Configuring beroNet VoIP Gateway with CallnClear

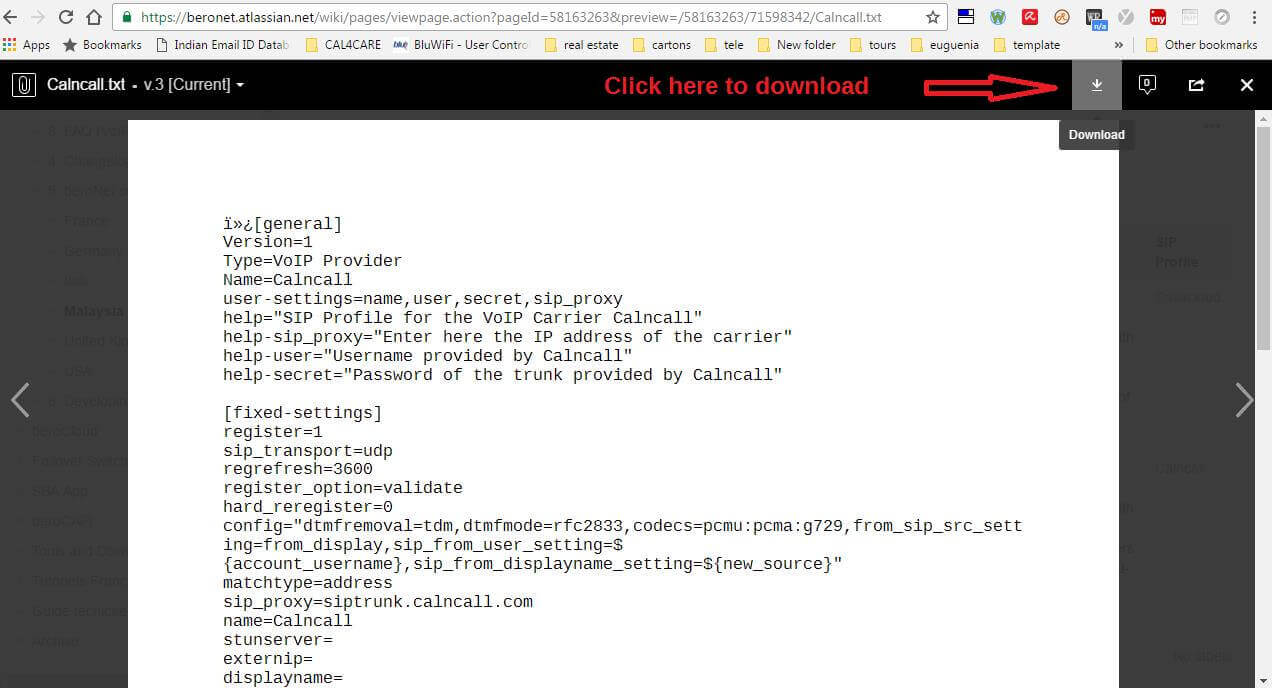

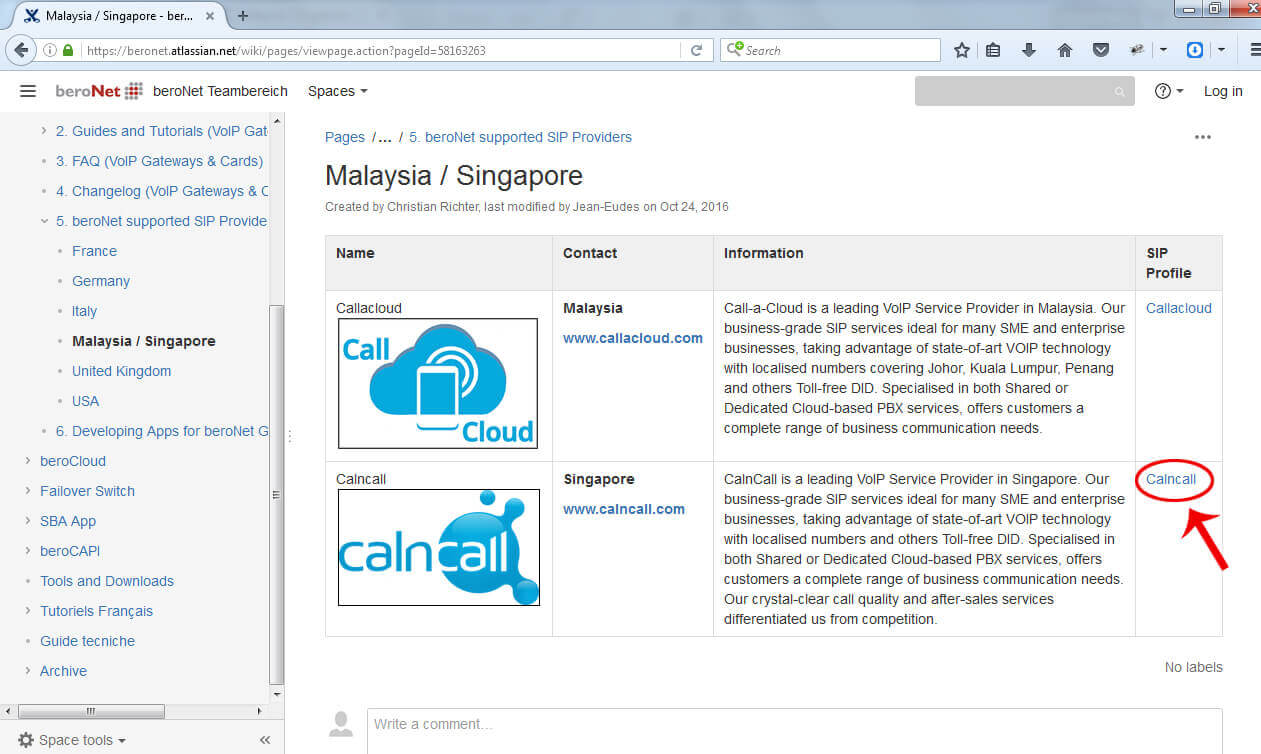

Step 1: Click below link to download CallnClear SIP profile:

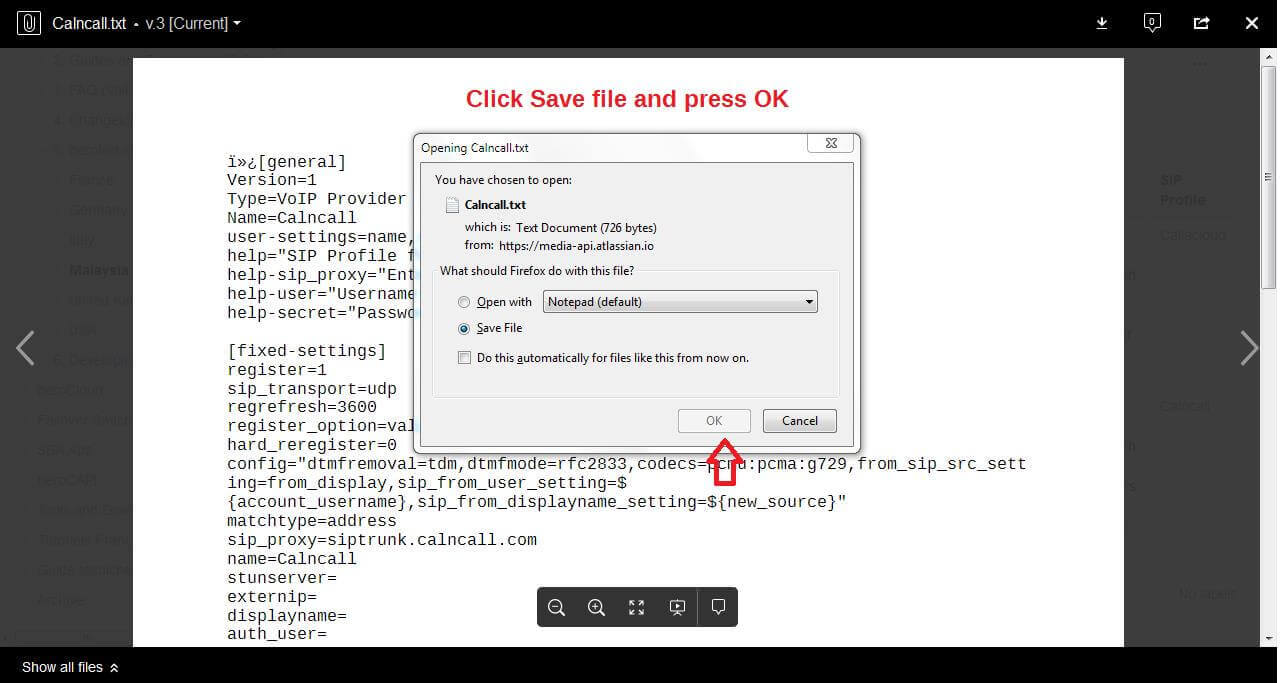

Step 2:

Step 3:

Step 4:

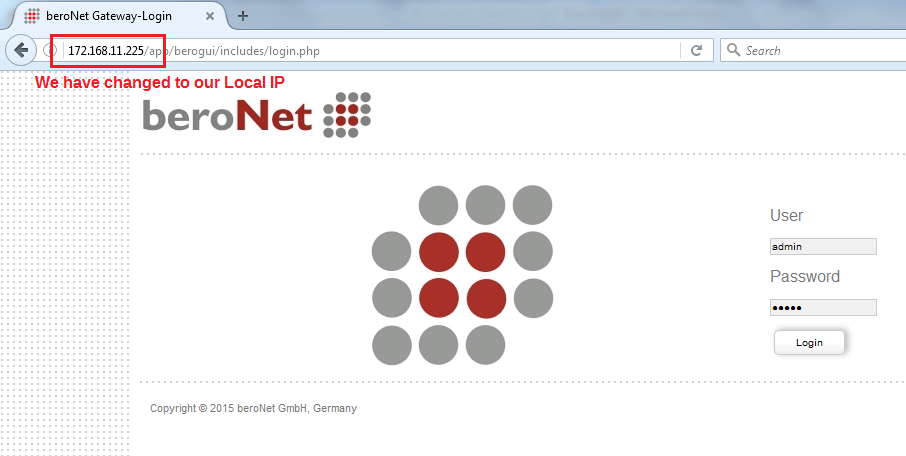

Please login into beroNet Gateway

Default IP:

Username: admin

Password: admin

Step 5: We must need firmware 16.x to upload the CallnClear SIP Profile.

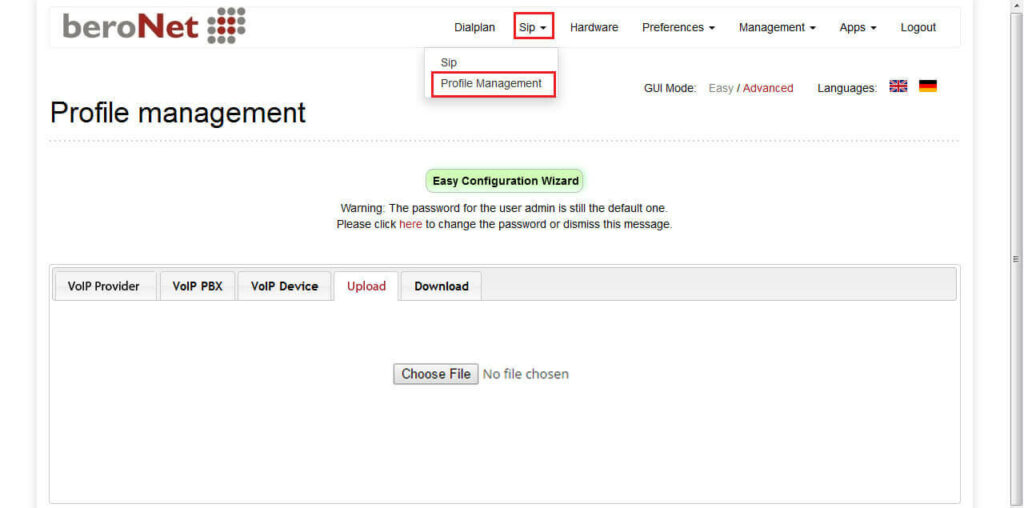

We have to upload the CallnClear SIP profile under SIP profile management as shown below.

Step 6: Now you can able to see the CallnClear SIP profile under VoIP provider as shown below.

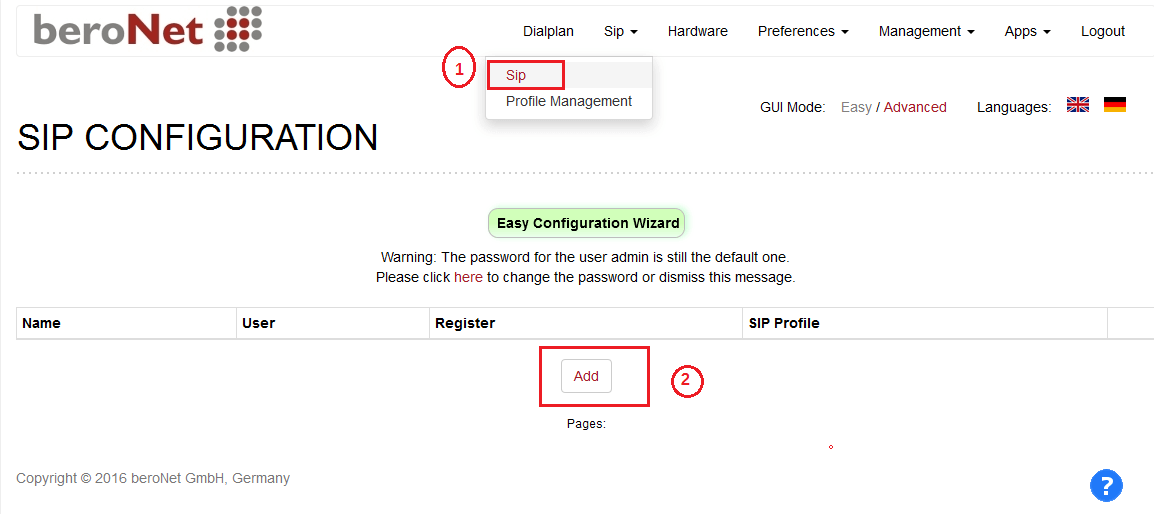

Step 7: Go to Sip –> Press Add button

Step 8: Select SIP profile –> VoIP Provider –> CallnClear–> Press Next button

Step 9: To get CallnClear Account Details, please contact

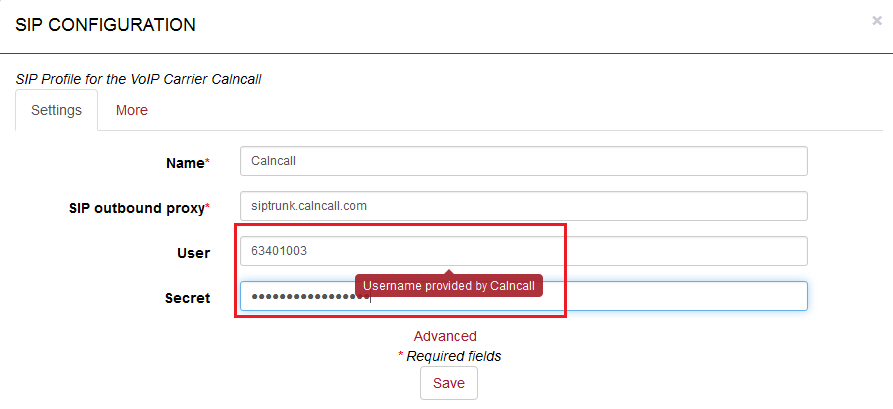

Step 10:

Step 11: To apply the settings click activate button.

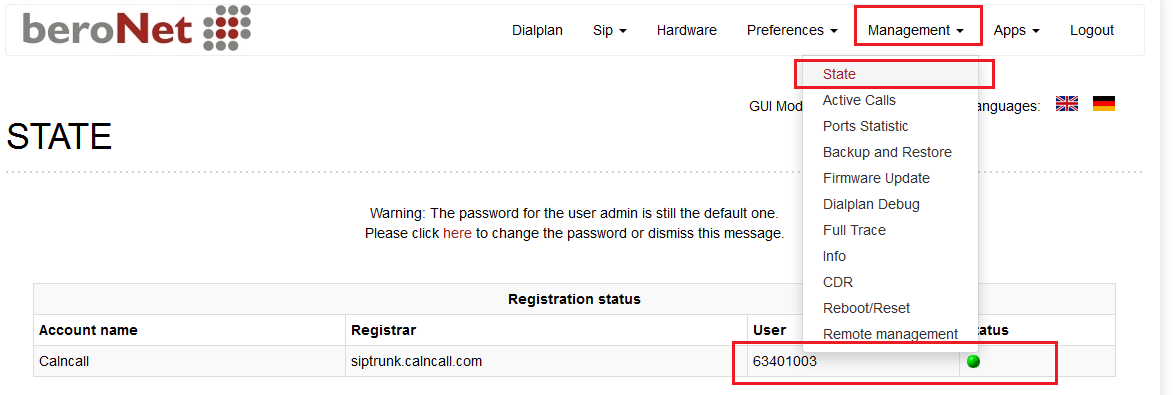

Step 12: To see the CallnClear SIP Trunk registration status Go to Management –> State

Step 13: In order to make / receive calls via CallnClear SIP Trunk as shown below figure.

For more details about BeroNet dial plan, please visit:
